CAN Bus Usage

The MCP2515 CAN controller on the RS485 CAN HAT communicates over the SPI bus and presents itself as a standard SocketCAN network interface to Linux. Once the kernel driver is loaded, all the familiar ip link and can-utils commands work exactly as they would with any other CAN adapter.

Prerequisites

Before working with CAN, make sure you have completed the Setup & Installation steps. In particular, the SPI overlay for the MCP2515 must be enabled in /boot/config.txt (or /boot/firmware/config.txt on newer Raspberry Pi OS images), and the Pi must have been rebooted after those changes.

Tip

You can verify the MCP2515 driver loaded correctly by running dmesg | grep mcp251x. You should see a line indicating the CAN device was registered.

Bring Up the CAN Interface

1. Set the bitrate and bring the interface up. The bitrate must match whatever is on the other end of the bus. Common rates are 125000, 250000, 500000, and 1000000 bps.

   sudo ip link set can0 up type can bitrate 1000000

2. Increase the transmit queue length (optional, but recommended for sustained traffic).

   sudo ifconfig can0 txqueuelen 65536

3. Confirm the interface is up.

   ifconfig can0

   You should see can0 listed with UP RUNNING.

Quick Test with can-utils

The can-utils package ships the two most useful tools for quick sanity checks: candump (receive) and cansend (transmit).

sudo apt-get install can-utils

Open two terminals (or two SSH sessions). In the first, start listening:

candump can0

In the second, send a single frame:

cansend can0 000#11.22.33.44

The first terminal should print the received frame. If you have a second CAN device on the bus, candump will display frames from that device as well.

Note

If you are testing with only one HAT and no other CAN device connected, cansend will still succeed (the frame is placed on the bus), but candump on the same device will not echo it back unless loopback mode is enabled.

Python Example

Install the python-can library:

pip3 install python-can

Send (send.py)

import os
import can

os.system('sudo ip link set can0 type can bitrate 100000')
os.system('sudo ifconfig can0 up')

can0 = can.interface.Bus(channel='can0', bustype='socketcan')

msg = can.Message(
    arbitration_id=0x123,
    data=[0, 1, 2, 3, 4, 5, 6, 7],
    is_extended_id=False,
)
can0.send(msg)
print(f"Sent: {msg}")

os.system('sudo ifconfig can0 down')

Receive (receive.py)

import os
import can

os.system('sudo ip link set can0 type can bitrate 100000')
os.system('sudo ifconfig can0 up')

can0 = can.interface.Bus(channel='can0', bustype='socketcan')

msg = can0.recv(10.0)
print(msg)
if msg is None:
    print('Timeout occurred, no message.')

os.system('sudo ifconfig can0 down')

Caution

The Python examples above use os.system() to bring the interface up and down, which requires root privileges. In a production system you would bring the interface up once at boot (via systemd or /etc/network/interfaces) and keep it running.

C Example (SocketCAN)

The Linux SocketCAN API lets you treat CAN frames like any other network packet. The key steps are: create a CAN_RAW socket, bind it to the can0 interface, then write() or read() struct can_frame objects.

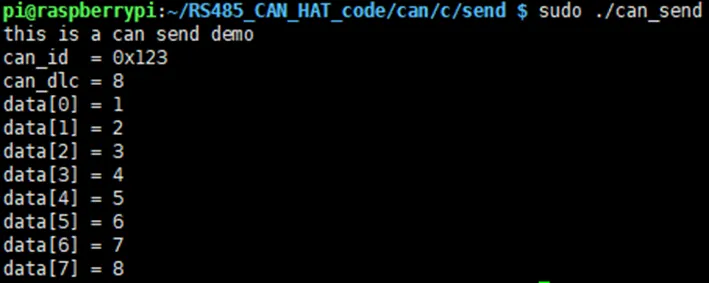

Send

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <net/if.h>
#include <sys/ioctl.h>
#include <sys/socket.h>
#include <linux/can.h>
#include <linux/can/raw.h>

int main(void)
{
    int s;
    struct sockaddr_can addr;
    struct ifreq ifr;
    struct can_frame frame;

    /* Create a CAN_RAW socket */
    s = socket(PF_CAN, SOCK_RAW, CAN_RAW);
    if (s < 0) {
        perror("socket");
        return 1;
    }

    /* Bind to can0 */
    strcpy(ifr.ifr_name, "can0");
    ioctl(s, SIOCGIFINDEX, &ifr);

    memset(&addr, 0, sizeof(addr));
    addr.can_family = AF_CAN;
    addr.can_ifindex = ifr.ifr_ifindex;
    bind(s, (struct sockaddr *)&addr, sizeof(addr));

    /* Build and send a frame */
    frame.can_id = 0x123;
    frame.can_dlc = 8;
    frame.data[0] = 0x11;
    frame.data[1] = 0x22;
    frame.data[2] = 0x33;
    frame.data[3] = 0x44;
    frame.data[4] = 0x55;
    frame.data[5] = 0x66;
    frame.data[6] = 0x77;
    frame.data[7] = 0x88;

    write(s, &frame, sizeof(struct can_frame));
    printf("Sent CAN frame 0x%03X\n", frame.can_id);

    close(s);
    return 0;
}

Receive

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <net/if.h>
#include <sys/ioctl.h>
#include <sys/socket.h>
#include <linux/can.h>
#include <linux/can/raw.h>

int main(void)
{
    int s, nbytes;
    struct sockaddr_can addr;
    struct ifreq ifr;
    struct can_frame frame;

    s = socket(PF_CAN, SOCK_RAW, CAN_RAW);
    if (s < 0) {
        perror("socket");
        return 1;
    }

    strcpy(ifr.ifr_name, "can0");
    ioctl(s, SIOCGIFINDEX, &ifr);

    memset(&addr, 0, sizeof(addr));
    addr.can_family = AF_CAN;
    addr.can_ifindex = ifr.ifr_ifindex;
    bind(s, (struct sockaddr *)&addr, sizeof(addr));

    printf("Waiting for CAN frame on can0...\n");
    nbytes = read(s, &frame, sizeof(struct can_frame));
    if (nbytes < 0) {
        perror("read");
        close(s);
        return 1;
    }

    printf("ID: 0x%03X  DLC: %d  Data:", frame.can_id, frame.can_dlc);
    for (int i = 0; i < frame.can_dlc; i++)
        printf(" %02X", frame.data[i]);
    printf("\n");

    close(s);
    return 0;
}

Compile with:

gcc -o can_send can_send.c
gcc -o can_recv can_recv.c

Shutting Down the CAN Interface

When you are finished, always bring the interface down cleanly:

sudo ifconfig can0 down

This releases the MCP2515 driver’s hold on the SPI bus and allows the chip to enter low-power standby.

Further Reading

The Linux kernel CAN documentation covers SocketCAN in depth — filtering, error frames, broadcast manager, and more:

Kernel CAN Documentation
